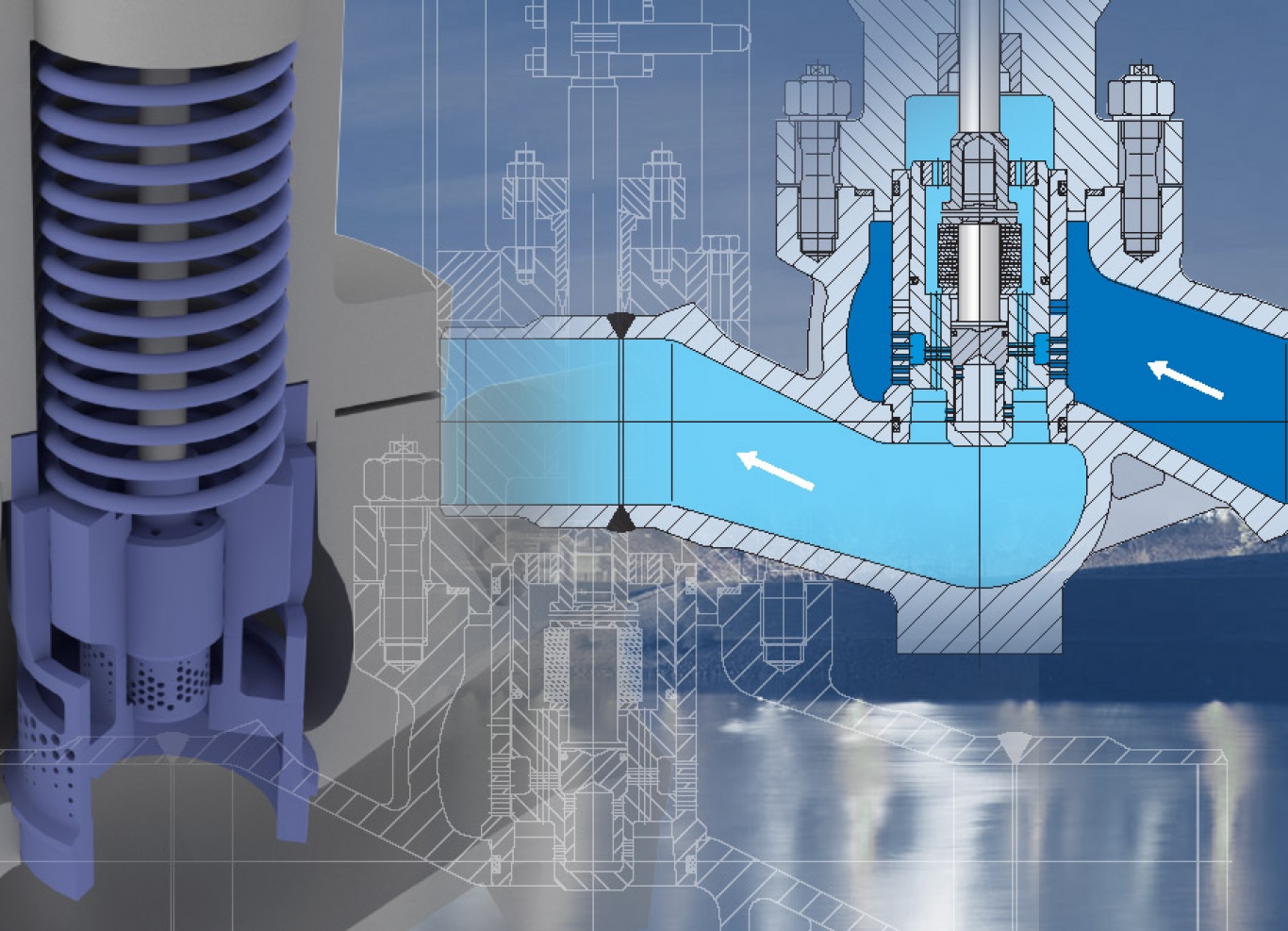

Feed water control valves are one of the most important control components of the water-steam circuit. The valve controls the supply of feed water to the boiler. The valve’s requirements are high. The pressure drop across the valve should be minimized, but still give a l good control characteristic. A main feed water control valve is designed for the total flow of the steam generation at low differential pressures. The start-up valve however, is used for low flows and high pressures.

Advanced Valve Solutions also provides a special design feed water control valve which gives us the opportunity to combine the start-up and main feed water control function in one valve. A decisive cost benefit for our customers!

Configuration

• Main feedwater control (30-100%)
• Start-up feedwater control (0-30%)
• Combi feedwater control (0-100%)

Features

• High quality forged- or castings
• Z-type, angle or straight pattern
• BW / flange connection according DIN or ANSI
• + balanced plug / - balanced plug / pilot plug
• Custom control characteristic
• Singe- or multistage construction
• Seat: clamped
• Plug: parabolic, perforated cage, perforated plug, V-port
• DIN
• ANSI
• Pneumatic / electric

Benefits

• Multi stage cavitation free control
• Number of stages designed for particular application
• Superior rangeability
• Tight shut off
• Easy maintenance
• No separate start up valve needed

Manufacturer

HORA is a German manufacturer of high pressure steam and water control valves covering all control systems in modern power plants. Together with a very good R&D department we are continuously seeking for better solutions and controllability of the steam water cycle. Flexible and dedicated performance company, supplying all tailor-made products.

• Control valves
• Steam conditioning valves
• Feed water Control valves
• Water injection valves
• Desuperheater valves
• Turbine bypass valves
• Turbine shut-off valves
• Automatic recirculation valves (Pump protection)
• Valves for super critical boilers
