ZWICK Valves special butterfly valves designed for delivering top performance

ZWICK is a German manufacturer of high performance triple offset butterfly valves. ZWICK excels in short delivery times because of a flexible and effective organisation. ZWICK successfully passed the Shell TAMAP procedure and achieved the very low allowable Fugitive Emission leakage rates.

ZWICK is a leading manufacturer of valves which meet the highest requirements and quality standards. The product range contains metal-seated butterfly valves known as series TRI-CON, the check valves series TRI-CHECK and the TRI-BLOCK series, ZWICK’s Double Block and Bleed Design.

ZWICK Valves products include:

Power products

• Butterfly Valves

Oil & Gas

• Triple Exentrical Butterfly Valves

Petro Chemical

• Butterfly Valves

ZWICK Valves Projects

• Nieuwe WarmteWeg (DNWW)
• Nuon heat storage
• District heating Weurt
• Koppel leiding regio Arnhem

Related Articles

• Service

PERSTA is a market leader in the manufacture of high performance, forged steel isolating valves.

Part of the Siepmann Group, with their own forging shop, Persta are an established manufacturer with a flexible production process. In particular PERSTA's high pressure globe and gate valves are a benchmark within the valve industry.

PERSTA has more than 60 years of experience in the development, construction and production of valves. Modern equipment and comprehensive approvals in accordance with international standards guarantee high-quality products and flexible compliance with customer requirements. Technical developments in terms of pressure, temperature and tolerance call for highly stable materials with a dense, homogenous structure. The company’s core business consists in the development, production and distribution of high-quality industrial forged steel valves, variously augmented by valves made from hot-formed sheets and cast steel. PERSTA steel valves are distinguished by their high quality and reliability.

PERSTA’s high quality products, continuous innovation and business flexibility have helped them to become a sought after specialist for valves, gate valves and check valves. Today we have more than 50 distribution partners around the world. Application areas for our products include: plant engineering, pipe laying, boiler construction, chemical and petrochemical industries, conventional and nuclear power plants.

Advanced Valve Solutions UK Limited is the contact for PERSTA in Great Britain.

Persta products include:

Power products

• Stop check valves
• Gate valves
• Globe Valves up to PN630
• Check valves
• Globe Valves up to PN160

Petro chemical products

• Gate & Globe Valves
• Gate Valves
• Stop Check Valves

PERSTA Projects

• Persta Stop Check Valve Protects Pulrose Power Station From £1m Repair
• BASF SE TDI Europe
• High pressure steamboilers SNB

PERSTA Technical Papers

• Stop Check Valves
• Two shift gate valves operation power plants

Related Articles

• Servicing
• Valves & More

HORA Valves manufactures special control valves for water and steam designed for delivering top performance

Wherever energy is generated and distributed, whether in Germany or China, Russia or India: HORA actuators and control valves perform decisive functions. HORA Valves has more than 40 years of experience in the development and manufacture of products for regulating water and steam flow. HORA Power Technology delivers individual customized solutions with outstanding performance efficiency and durability along with all associated services.

With many years of engineering experience with Hora Valves in critical power generation applications in the UK Advanced Valve Solutions offers more than just products. In addition to holding joint patents with HORA Valves, Advanced Valve Solutions engineers have excellent working relationships with engineers and technical staff. This enables Advanced Valve Solutions to offer the right product for your application and the best technical support possible. Our popular technical forums, Vales & More, include a day spent with Hora engineers.

Our experience and expertise with Hora Valves has enabled us to help many UK power stations significantly reduce maintenance costs and downtime.

Advanced Valve Solutions has:

• Designed custom valves and associated trim
• Assessed critical spares stock levels to minimise downtime
• Provided valve diagnostics to predict failure and implement preventative maintenance

Advanced Valve Solutions UK Limited is the contact for HORA Valves in Great Britain.

HORA Valves products include:

Power products

• Control valves
• Steam conditioning valves
• Feed water Control valves
• Steam Cooling
• Minimum Flow Valves
• Drain Valves
• Water injection valves
• Desuperheater valves
• Turbine bypass valves
• Turbine shut-off valves
• Automatic recirculation valves (Pump protection)
• Valves for super critical boilers

Petro chemical

• Turbine bypass Valves
• Combi Feed Water Control Valves
• Steam Cooling

HORA Valves Projects

• Marchwood CCGT Power Station Cooled Desuperheater - Date: August 2013 · Cost Savings: £200,000 per year
• Comtes 700
• Nuon heast storage
• High pressure steamboilers SNB

HORA Valves Technical Papers

• Two shift cooled desuperheater
• Two shift gate valves operation power plants
• Two shift feed water control valves
• Two Shift PRDS Paper

Related articles

• Servicing
• Valves & More
• The HORA iPhone App ValveMate

The worldwide introduction of wind and sun power and the new environmental requirements for coal fired stations gives an increasing demand on gas fired power stations to balance the grid and
to make a reliable quick start and stop regime possible.



To start and to stop a modern CCGT installation cannot be done instantaneously. The gas turbine has a certain time to get up to speed and to switch from full speed no load to full load. It should be warmed through first. The rest of the power plant, mainly the HRSG, the waste heat steam boiler downstream of the gas turbine, the interconnecting steam pipework, the steam turbine and the complete cooling circuit have to be brought up to working temperature as well.

This all has to be done within a certain time pressure to limit the starting costs and to supply as
soon as possible to the grid. The demand to minimize the starting times is stronger in the continental theater due to the higher fuel costs. Remaining for all CCGT plants is the demand of being reliable and the need to be sure to be able to start the installation and to supply the electricity required
to the grid...
(download the paper below)

The worldwide introduction of wind and sun power and the new environmental requirements for coal fired stations gives an increasing demand on gas fired power stations to balance the grid and
to make a reliable quick start and stop regime possible.



To start and to stop a modern CCGT installation cannot be done instantaneously. The gas turbine has a certain time to get up to speed and to switch from full speed no load to full load. It should be warmed through first. The rest of the power plant, mainly the HRSG, the waste heat steam boiler downstream of the gas turbine, the interconnecting steam pipework, the steam turbine and the complete cooling circuit have to be brought up to working temperature as well.

This all has to be done within a certain time pressure to limit the starting costs and to supply as
soon as possible to the grid. The demand to minimize the starting times is stronger in the continental theater due to the higher fuel costs. Remaining for all CCGT plants is the demand of being reliable and the need to be sure to be able to start the installation and to supply the electricity required
to the grid...
(download the paper below)

Project: Slibverwerking Noord-Brabant (SNB) -  Moerdijk

Contractor: NEM Energy B.V.

Advanced Valve Solutions Delivery:

• HORA, Control Valves and Desuperheaters.
• Persta, Large bore valves  &  Pneumatic actuated valves.

Slibverwerking Noord-Brabant (SNB) will be in a year’s time self-sufficient in their need for energy. From that SNB is generating sufficient power, that they won’t need the energy grid any longer.

This will be realized by replacing 2 out of 4 low-pressure steam boilers present on site SNB. The Dutch power company, NEM is the appointed contractor of this project, and will supply the two high-pressure steam boilers.

With the help of these new, high-pressure boilers, the production of green-energy will be multiplied by the number 9. This can be seen as a large investment, but also a huge opportunity.

Here, at Advanced Valve Solutions, we would like to thank all parties for their trust in our organisation as we are proud to be part of this prestigious project.

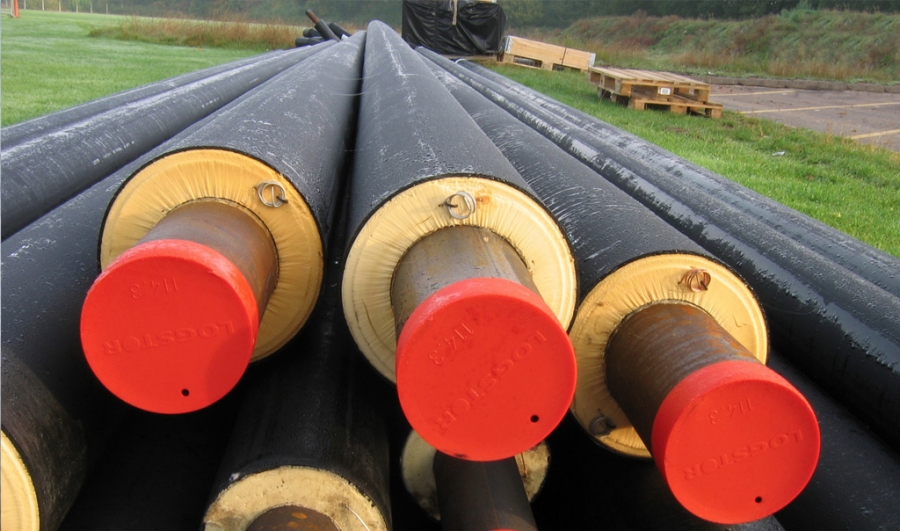

Project: Koppelleiding, AVR - Duiven

Contractor: Cofely West Nederlands
Advanced Valve Solutions Delivery:

• ZWICK,  Metal Seated, Stop Check valves
• Persta, Globe valves, series 200AE

This project will ensure that in the near future, district heating (city: Arnhem) will be supplied over the existing structure. Heating, now provided by WKC Kleefsewaard will stop in short term and will be taken over by waste incinerator AVR Duiven.

Energy from waste is now even more efficient! To make this al happen a coupling line (koppelleiding) is required to be build and all necessary preparation needs to be done on site at AVR Duiven. AVS is awarded the contract for supplying all necessary O-C valves.

Facts coupling line (koppelleiding):

Maximum capacity: 30 Mw , this is enough for 4,000 housekeeping and 100 businesses.

Project: ARN - Weurt

Contractor: Cofely West Netherlands

Advanced Valve Solutions Delivery:

• ZWICK Metal Seated, Stop Check valves.

Within the process of burning waste materials, the heat generated is converted into electricity.

With the existence of district heating,  surplus heat from the incinerator ARN – Weurt can be used for heating 14,000 existing and new build houses and companies in the Waalfront and Waalsprong areas.

With the Zwick triple eccentric butterfly valve,  we are able to supply a metal seated, and bubble tight valve, for long lasting and high reliability for the complete installation.

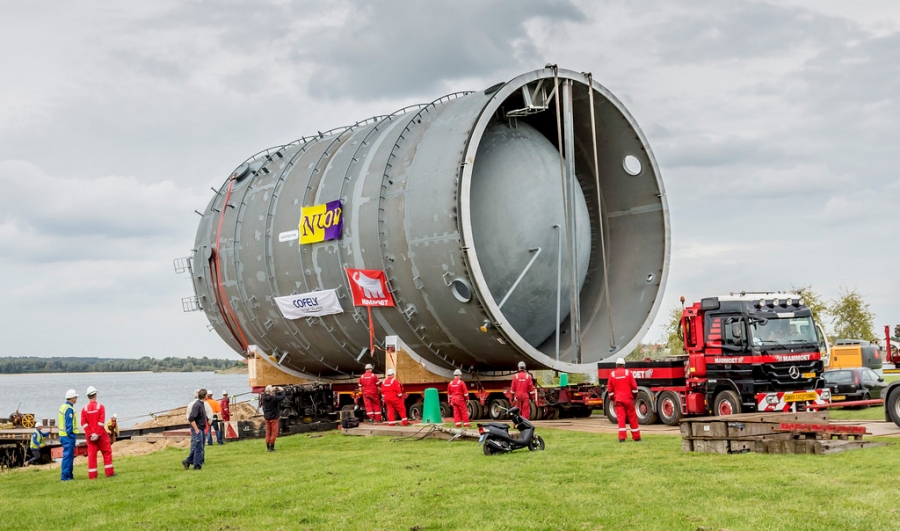

Project: Nuon Heat Storage - Diemen

Contractor: Cofely West Netherlands

Advanced Valve Solutions Delivery:

• ZWICK, Metal Seated, Stop Check valves.
• HORA, DN350 PN16, Discharge valves.

Nuon Limited,  is currently developing an extension of its existing facilities, at the Diemen location, in the Netherlands.The current facility in Diemen, consists of two Combined Heat and Power Plants (DM33 & DM34) and five auxiliary gas fired boilers. The proposed extension consists of a heat accumulation tank, connected to the existing district heating supply system. Advanced Valve Solutions is proud to be the awarded, as key supplier for discharge HORA control valves and  Zwick metal seated, triple eccentric stop check valves.

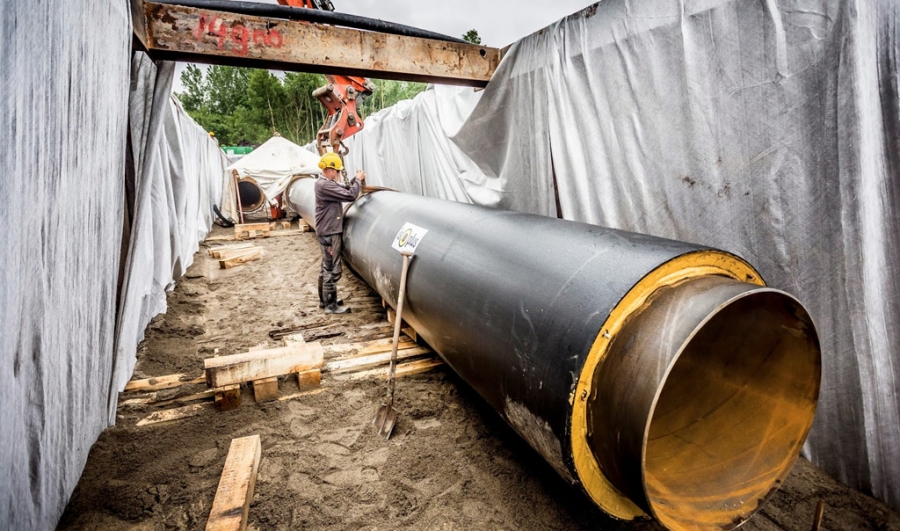

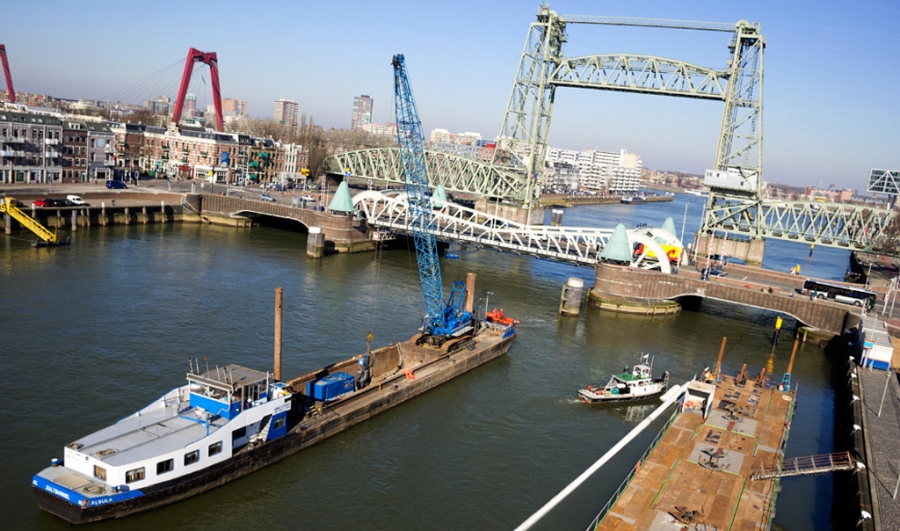

Project: De Nieuwe WarmteWeg (DNWW) - Rotterdam

Contractor: Visser & Smit Hanab Installatie BV

Advanced Valve Solutions Delivery:

• ZWICK,  TRI-CHECK,  Metal Seated, Stop-Check-Valves.

For this project, 26 kilometer long piping will be installed for transporting heated water. The Nieuwe WarmteWeg will transport waste heat originating from waste incineration plant AVR Rozenburg. In the coming years 50,000 houses and companies will use this sustainable heat. The AVR Rozenburg heated water will circulate in a closed system. To keep the system pressurized, 3 booster stations will be built. Oct. 2012, AVS has been awarded the order for the supply of 19 pcs. ZWICK Stop-Check-Valves for these three booster stations. Delivery of the valves took place in April 2013. AVS is pleased to support the Rotterdam climate initiative with their CO2 (reduction) emission program.
